Edding in-line IP67 – TIJ printer for critical industrial environments

Edding in-line IP67 – TIJ printer for critical industrial environments

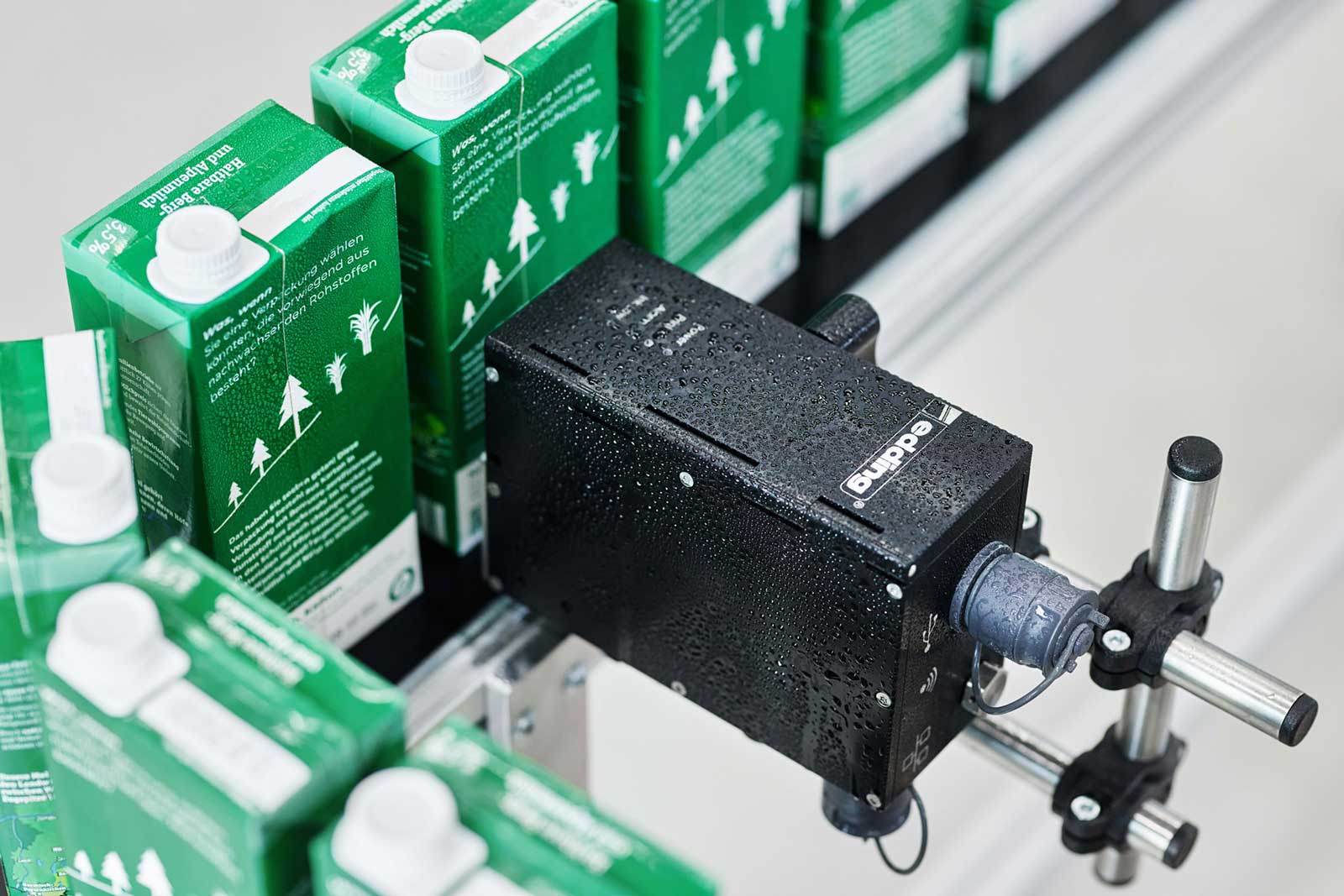

The TIJ printer IP67 Edding in-line is designed to ensure reliable printing in challenging production environments. With IP67 protection, this device is fully resistant to dust, humidity and high-pressure washdowns.

Its sealed housing makes it suitable for temporary immersion, ideal for sectors requiring frequent sanitization such as food, cosmetics and pharmaceuticals. This industrial TIJ printer prints text, barcodes, logos and expiry dates at up to 600 dpi resolution.

The compact unit integrates the printhead, controller, waterproof LCD display, cartridge slot and sealed connectors into a single enclosure, offering maximum protection and operational reliability.

Key features of the printer

This TIJ printer IP67 was developed in partnership with Elried. It can be controlled via PC, smartphone, tablet, or through Siemens PLCs. Alternatively, it works as a stand-alone unit using the integrated waterproof display.

Technical specifications

• TIJ technology with 600 dpi resolution
• Print height: from 1.0 to 12.7 mm
• Up to 10 print lines
• Speed: up to 240 m/min (78 prints/sec)
• Print distance: max. 8 mm
• Memory: over 100,000 texts and logos
• Connectivity: Ethernet RJ45, MQTT, OPC UA, HTTP, TCP, USB
• Control via web interface, app, or PLC
• 1.8” waterproof LCD with status LEDs
• IP67 connectors for encoder, trigger, alarm signals
• Compatible with inks for porous and food-grade surfaces
• Power supply: 100–240 V AC, 50/60 Hz
• Dimensions: 215 × 98 × 160 mm – Weight: 1.6 kg
• Operating temperature: 5 – 40 °C

Applications of the TIJ printer IP67

Thanks to its full protection, this TIJ printer IP67 is ideal for industries that require hygiene, resistance and uninterrupted operation in critical environments. It performs reliably even in humid or dusty areas and supports direct integration into production lines.

Typical use cases

• Food and beverage manufacturing
• Pharmaceutical and cosmetics industry
• Production environments with frequent sanitization (HACCP)
• Dusty sectors: construction, chemicals, wood
• Packaging lines with washdown cleaning procedures

For projects requiring scalable printing widths or modular configurations, discover the Edding in-line PRO – Modular TIJ printer for industrial use.
